JEFA WP810 CABLE STEERING PEDESTAL
The WP810 flat top pedestal.
The WP810 pedestal solution is Jefa's answer to the demand for a strong, light and affordable flat top pedestal for the growing number of twin wheel steered boats with pods for instuments. The pedestal is completely made of high strength aluminium 6082. To protect the pedestal against the tough environment it’s alochromed (chromate conversion coating) and after that powder coated resulting in an long lasting finish. This build method results in a relatively low weight (5.5 Kgs) and a very strong, stiff and durable construction. Due to a very flexible build method, the pedestal angle and height are variable.
Brake spinner is not included and should be ordered separately.

* the displayed wheel are optional

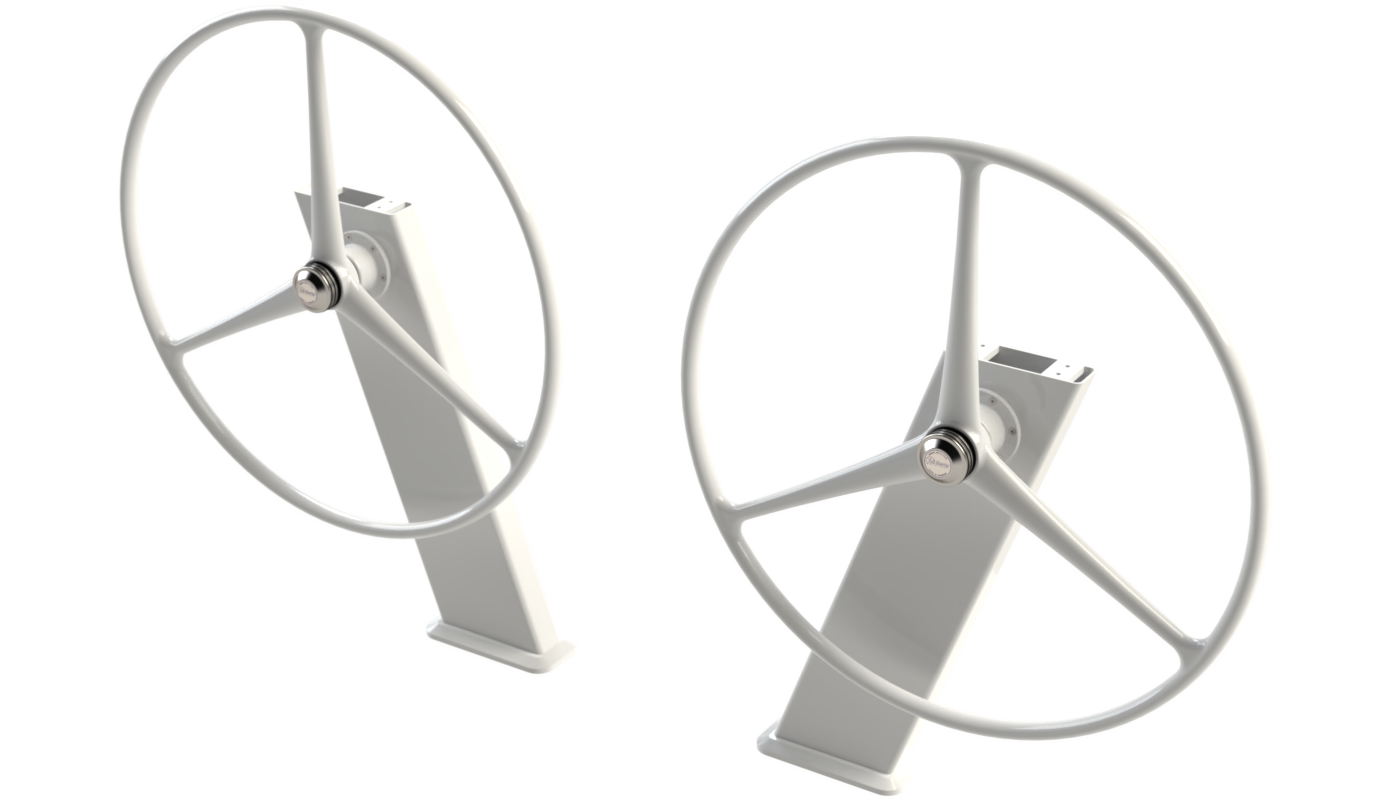

Jefa 810 series steering pedestal variations
  • Jefa has a wide range of steering wheels which fit on all our pedestals and steerers.
  • On request the standard BS25 bulkhead steerer on WP810 can be change to a BS50 as a possibility to get the wheel 34 mm closer to the pedestal.
  • Jefa's integrated steering disengagement unit can be installed on WP810 as an easy, safe and fully invisible unit to disengage the steering wheel while sailing.

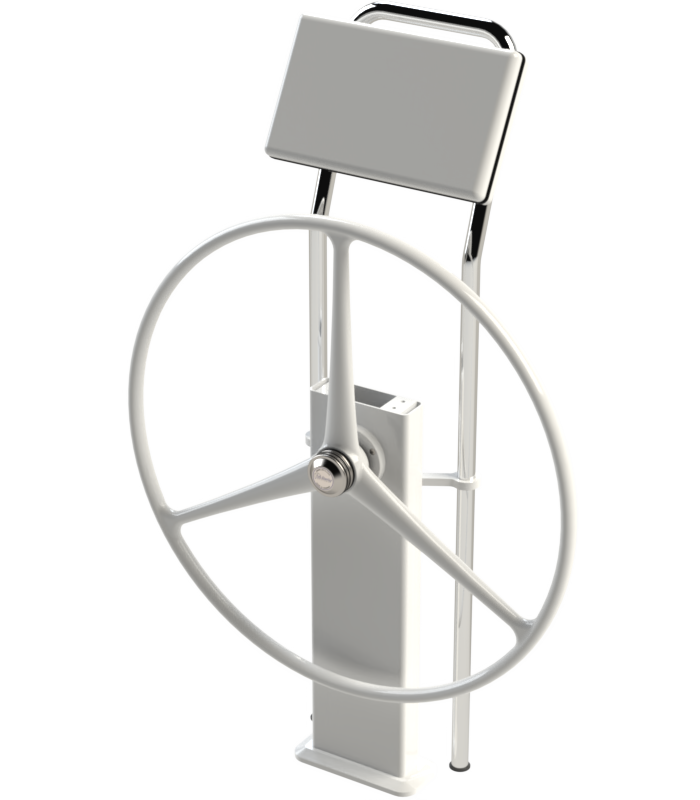

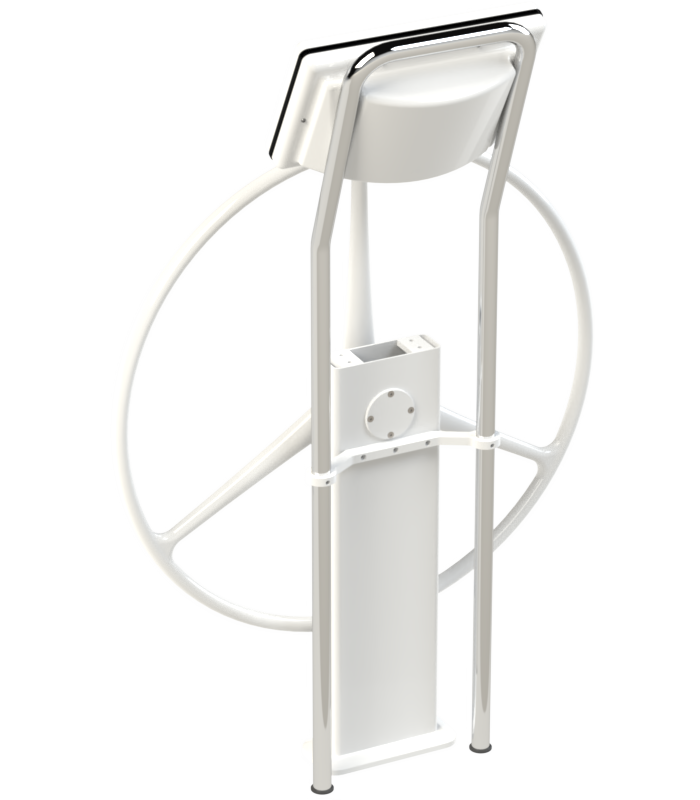

  • A GUA800-R guardrail can be installed on the pedestal. The robust 32 mm diameter stainless steel 316 guardrail is firmly attached with a bracket to the pedestal offering a strong support when moving around in the cockpit.

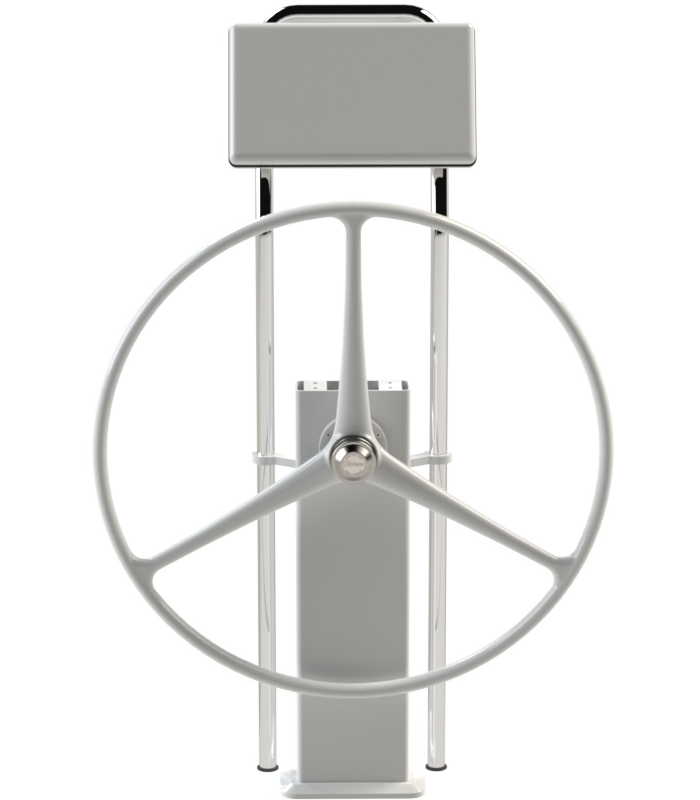

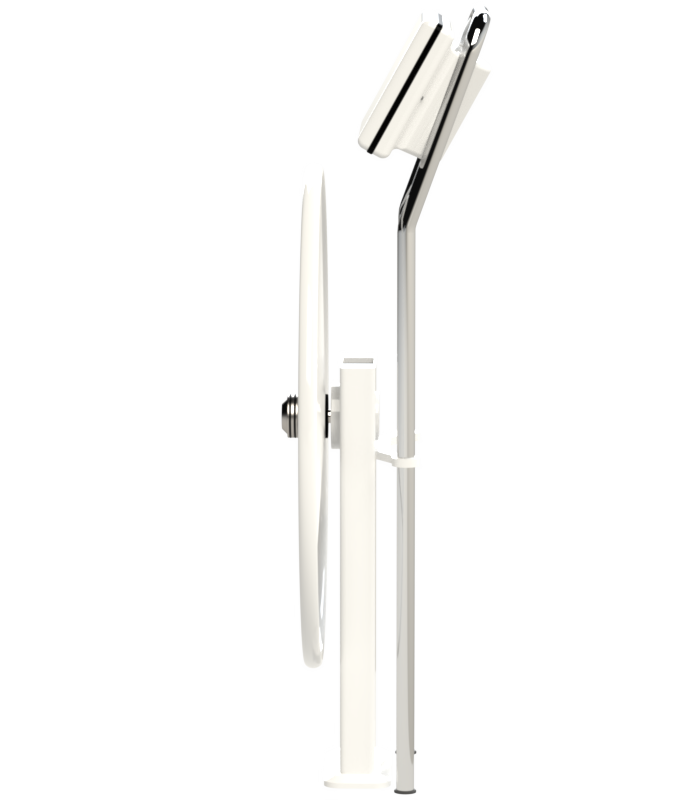

  • With a GUA800E-R forward bend extended guardrail (called kick-back guardrail) it is possible to mount an instrument pod for the mounting of instruments, buttons and joysticks.

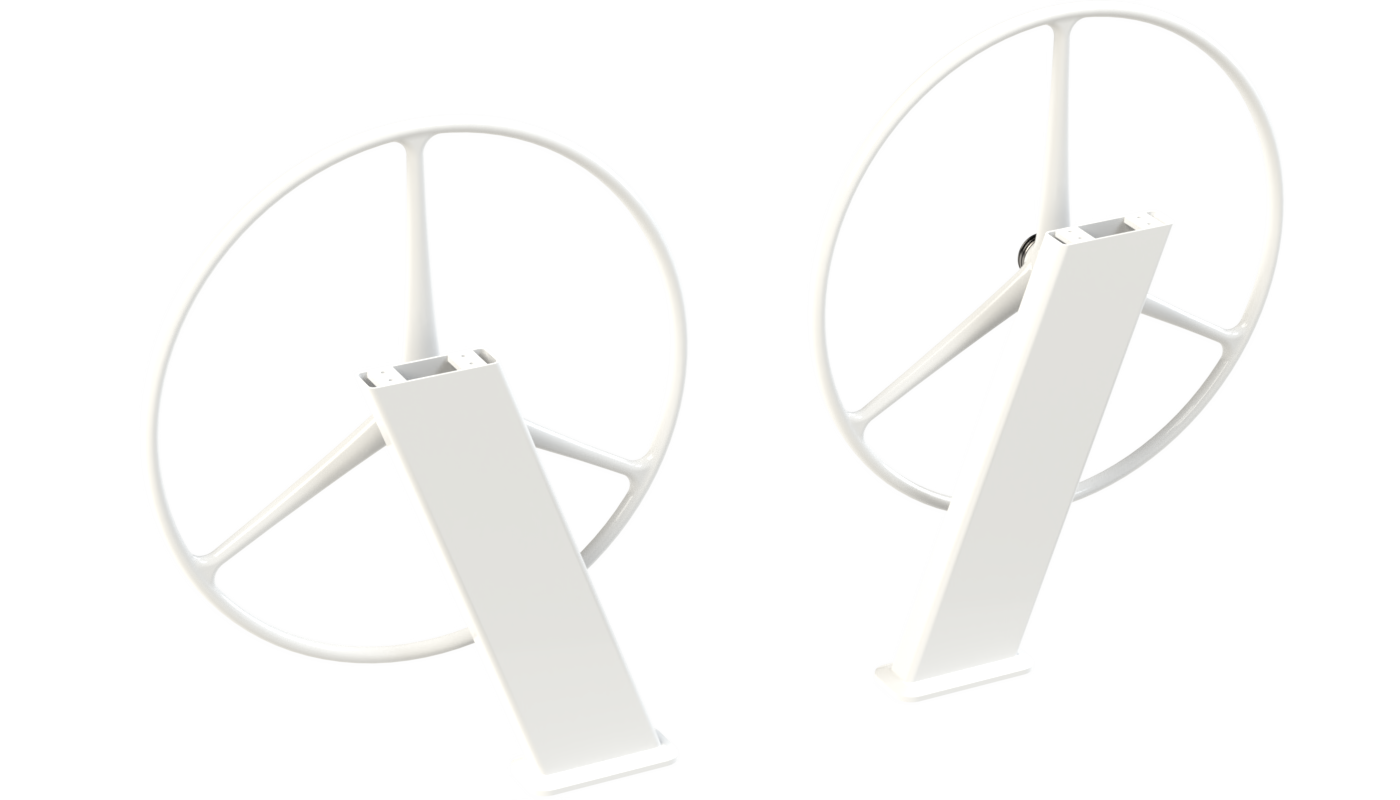

The following illustrations show the most common combinations.

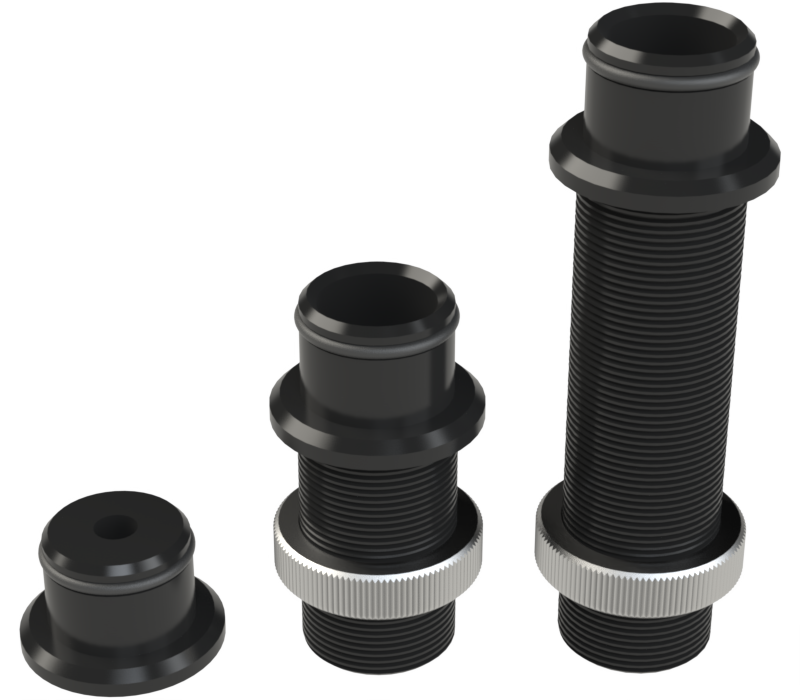

Jefa 100 series guardrail feet

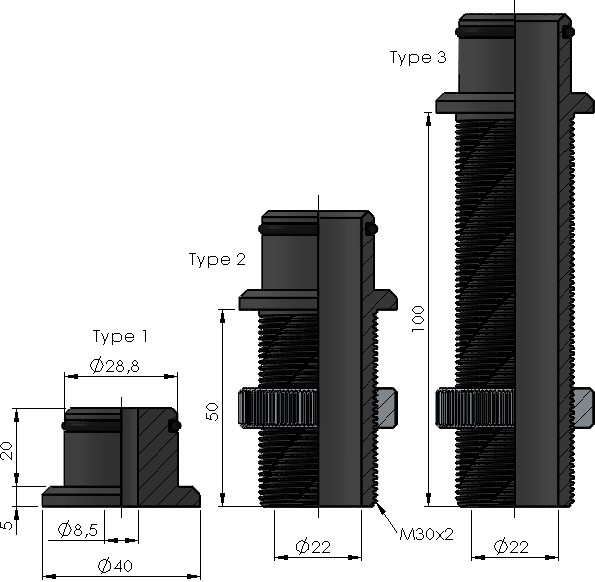

The Jefa type 100 guardrail feet are unique in the world as they not only secure the guardrail firmly to the cockpit floor, but they also provide a watertight solution when cables have to go through the cockpit floor. The only part visible from the outside is a 5 mm high, 40 mm diameter black ring as the top of the guardrail foot is inserted into the stainless steel tube. A 3 mm O-ring makes sure no water will enter from outside. Jefa steering produces 3 types of guardrail feet. Type 1 is supplied when no penetration to the cockpit floor is required for engine control or instrument cables. Type 2 is supplied when engine control or instrument cables have to go through the cockpit floor with a maximum thickness off 45 mm. Type 3 is supplied when engine control or instrument cables have to go through the cockpit floor with a maximum thickness off 95 mm.

Jefa WP810 cable steering pedestals
The 25 mm steering shaft is equipped with the standard international 1" taper to fit all Jefa wheels up to 1500 mm diameter. The steering shaft has 2 high efficiency 25 mm ball bearings, which are double sealed and pre-lubricated for a long and maintenance free life. The lip seal at the front is the especially developed Jefa PUR seal, which contains no metal parts for a life long problem free usage.
The pedestal can be equipped with multiple sprockets to match the turns starboard to port as specified. Please look at the table for choosing the the sprocket size in relation to the quadrant radius.
The WP600 pedestal can be used for open wire systems with custom cross wire and parallel wire idlers. These idlers have large base plates for a a firm clamping of the deck between the deck flange of the pedestal and the base plate. The idlers are mounted with pedestal mounting studs, so no additional mounting bolts are necessary.

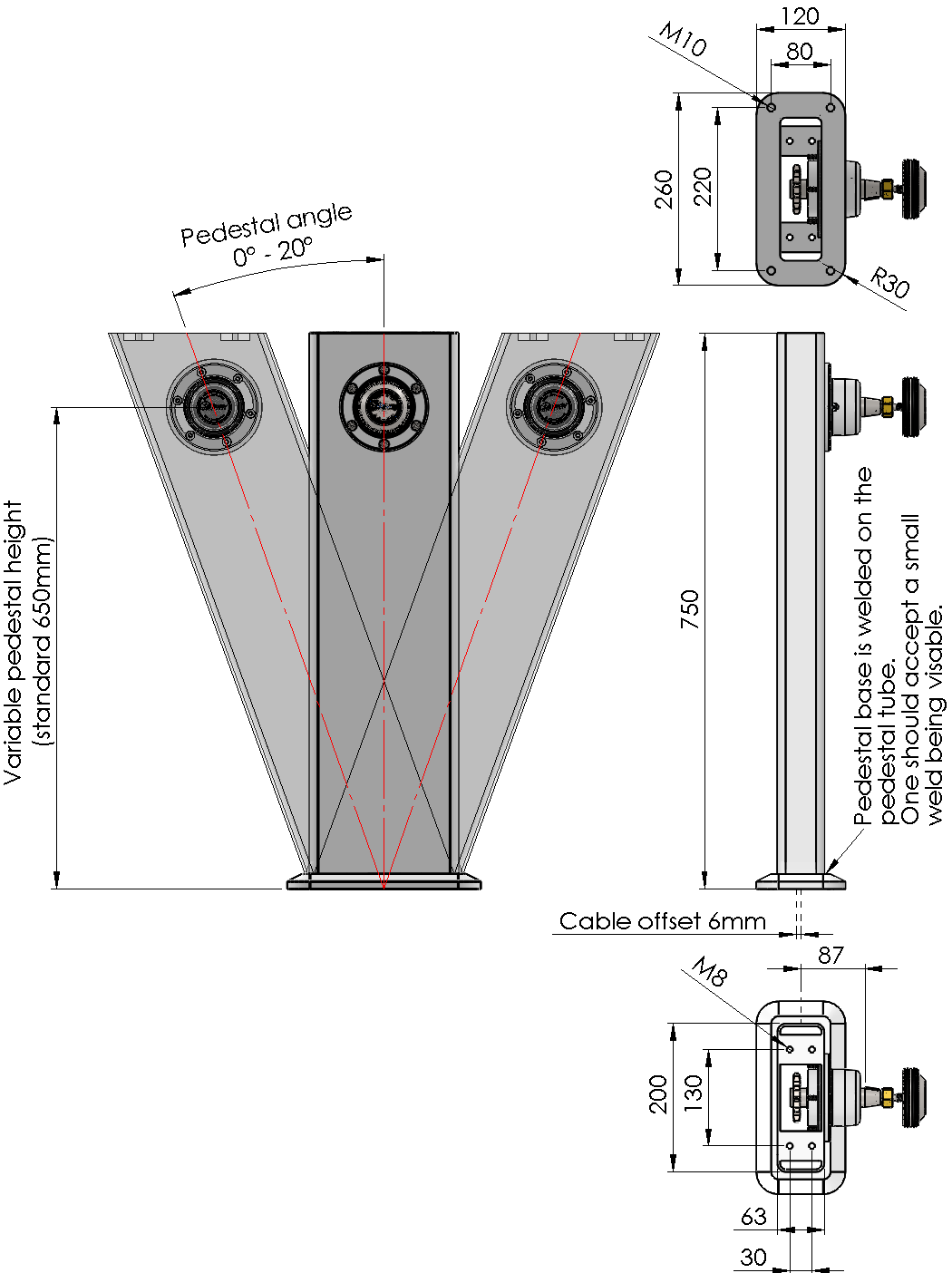

Jefa WP810 cable steering pedestal dimensions

  • The standard height of the pedestal are 650 mm. Custom heights are available at request.
  • The pedestal mounting studs are available in multiple lengths to suit the cockpit floor thickness. The mounting studs are positioned on a square of 220 by 80 mm.
  • The cable offset relative to the middle of the pedestal is 6 mm.
  • The mounting surface on top of the pedestal is 200 by 63mm with 4pcs M8 threads at 130 by 30mm.
Jefa WP810 cable steering pedestals and accessories
Part No. Description
WP810-11 WP810 racing pedestal with 11 teeth 5/8" st.st. sprocket
WP810-13 WP810 racing pedestal with 13 teeth 5/8" st.st. sprocket
WP810-15 WP810 racing pedestal with 15 teeth 5/8" st.st. sprocket
WP810-17 WP810 racing pedestal with 17 teeth 5/8" st.st. sprocket
GUA800-R WP350, WP600 and WP800 guardrail, incl. bracket and guardrail feet
GUA800E-R WP350, WP600 and WP800 extended guardrail, incl. bracket and guardrail feet
WS-DIS Disengagement unit integrated in steerer/pedestal
ST10065 4pcs mounting studs M10x65mm (80) with nut
ST10080 4pcs mounting studs M10x80mm (95) with nut
ST10120 4pcs mounting studs M10x120mm (135) with nut
The WP810 racing pedestal ordering options are: Height (650 mm standard) and Angle (0°-20°)

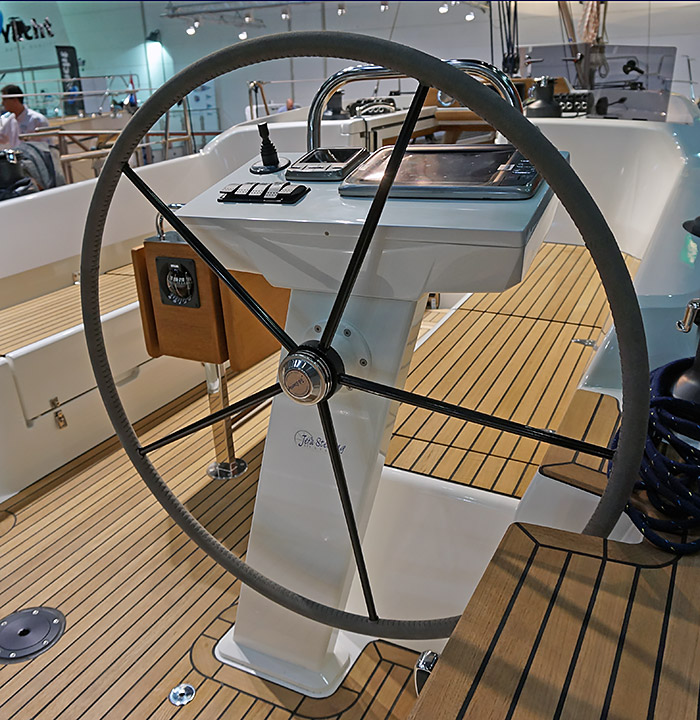

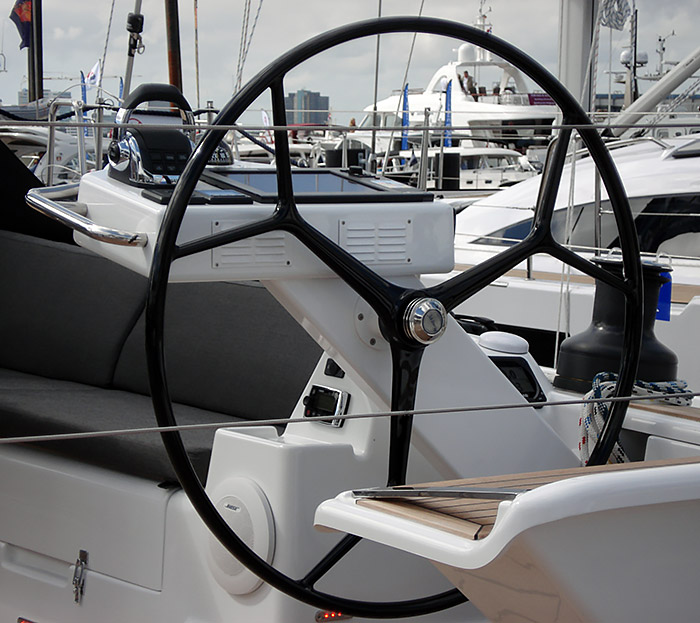

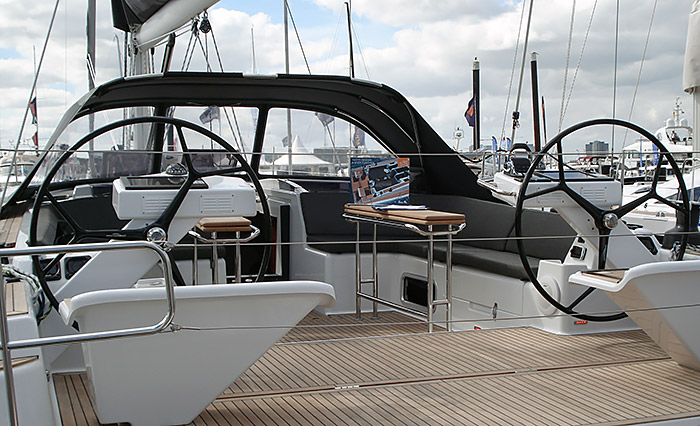

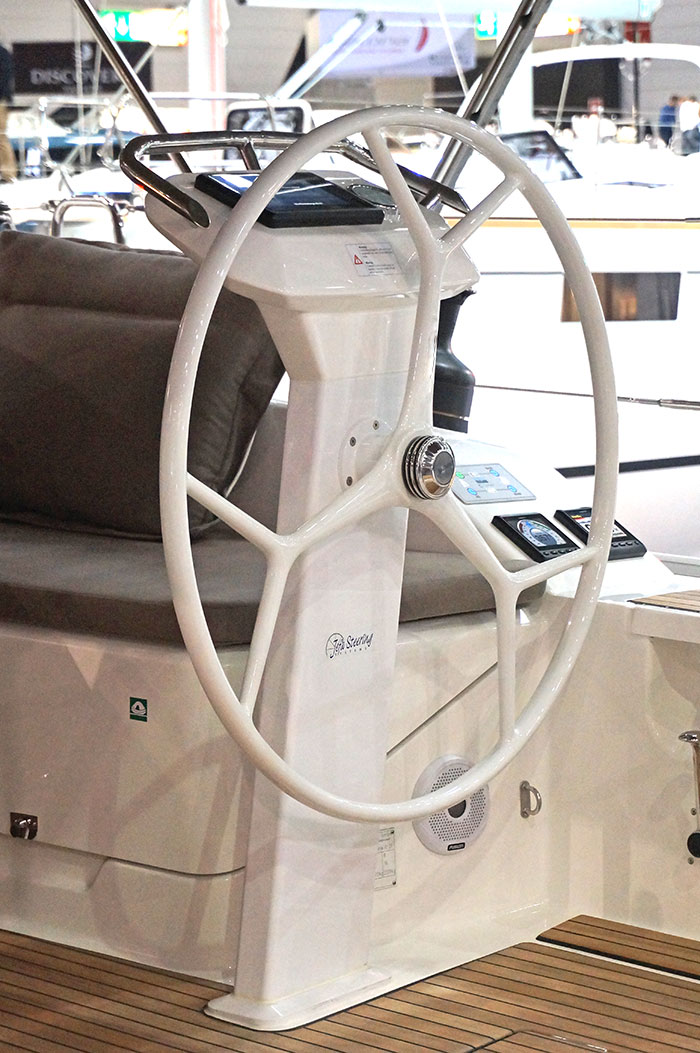

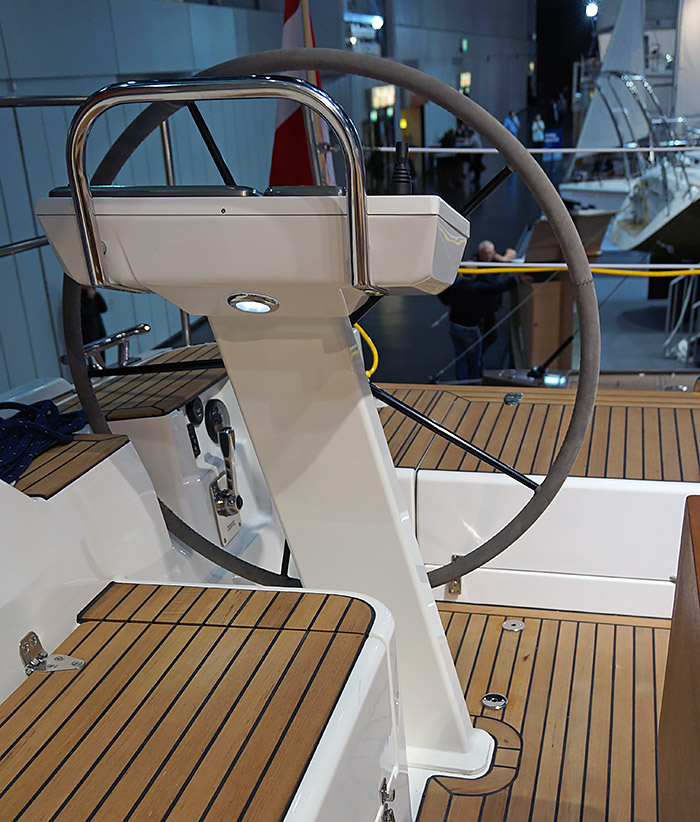

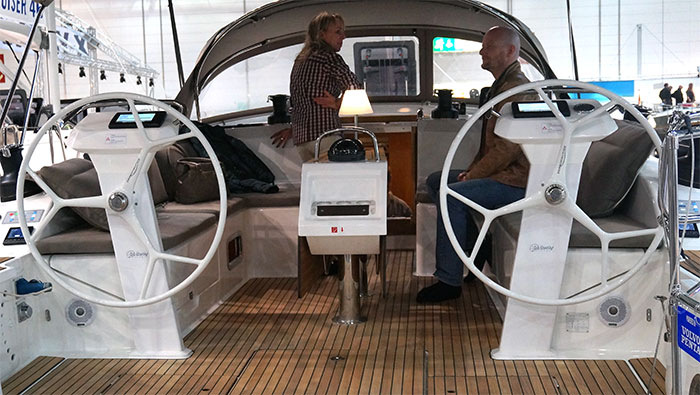

WP810 pedestal example
