| The Jefa BS50 type bulkhead steerer incorporates
a high efficiency 25 mm ball bearing, which is double sealed and
pre-lubricated for a long and maintenance free life. Due to this single
bearing arrangement (for compact dimensions) the BS50 steerer should
always be used in conjunction with a support bearing. The lip seal at the
front is the especially developed Jefa PUR seal, which contains no metal
parts for a life long problem free usage. The stainless steel steering shaft has a diameter of
25 mm to guarantee
a stiff and strong steering arrangement for wheels up until 1500 mm
diameter, above 1500 mm wheel diameter the BS30
should be used. The large internal brake disk provides an efficient and strong braking
arrangement. The number of turns achieved with the various sprockets can
be found in our sprocket table. Brake spinner is not included and should be ordered separately. |

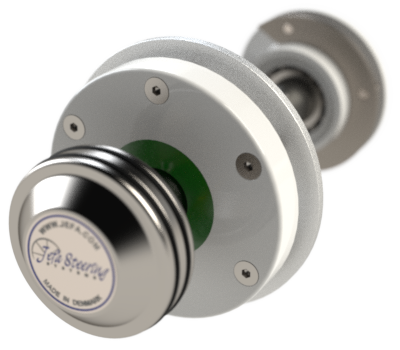

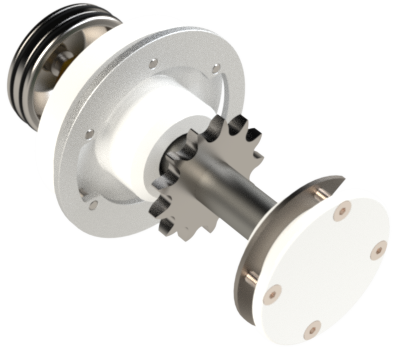

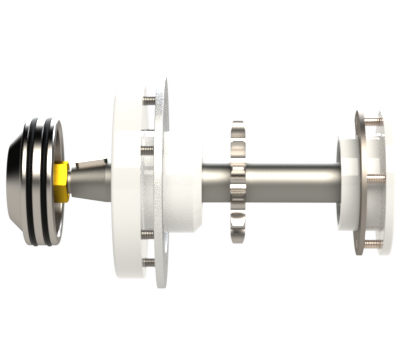

| BS50 Standard version |

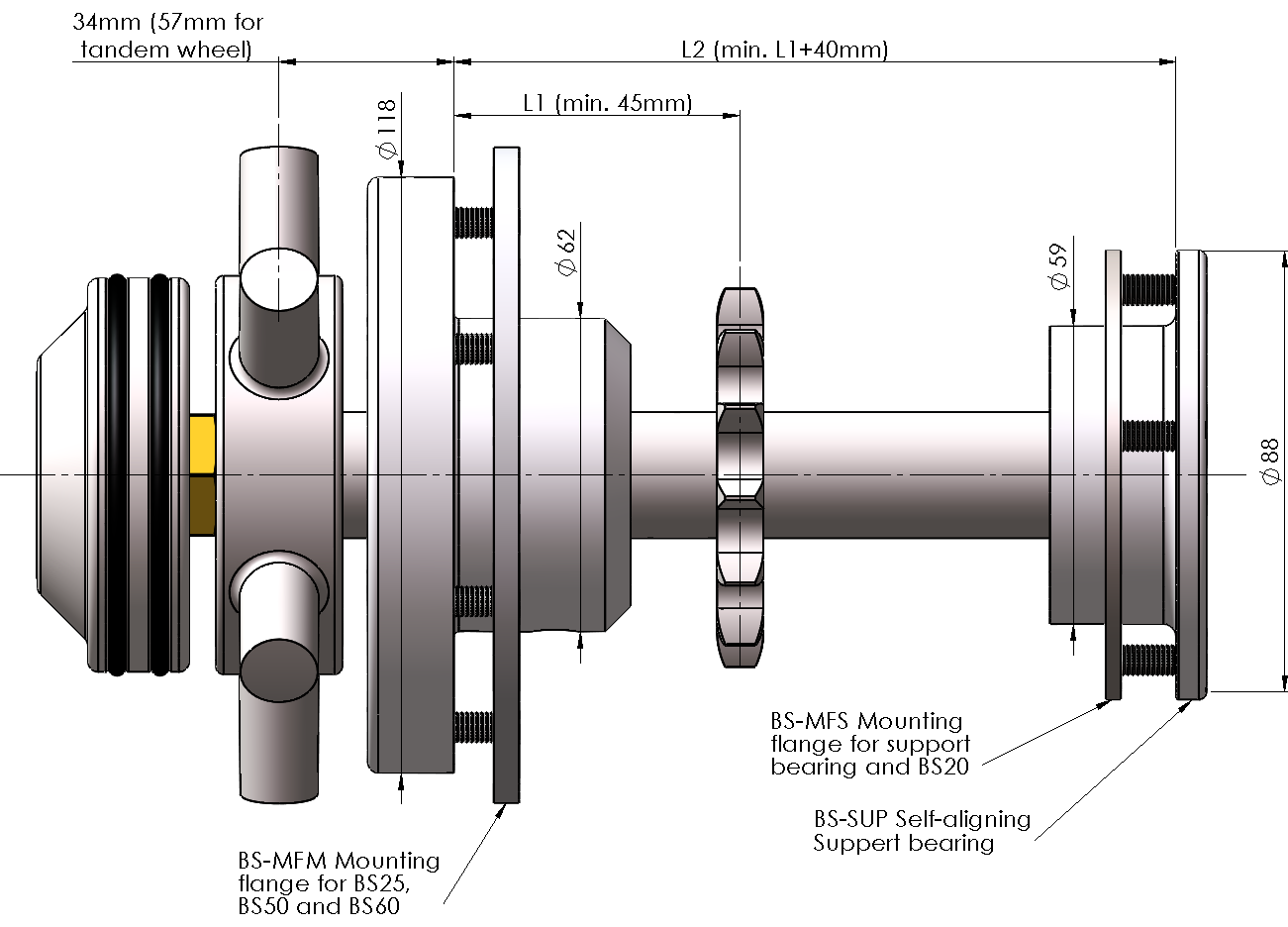

| General measurements standard version |
|
|
Part No. |
Description |
| BS50-11 | BS50 bulkhead steerer with 11 teeth 5/8" st.st. sprocket |
| BS50-13 | BS50 bulkhead steerer with 13 teeth 5/8" st.st. sprocket |
| BS50-15 |
BS50 bulkhead steerer with 15 teeth 5/8" st.st. sprocket |
| BS50-17 | BS50 bulkhead steerer with 17 teeth 5/8" st.st. sprocket |
| BS-SUP |
Support bearing with self-aligning bearing for bulkhead steerer |
| BS-MFM |
Mounting flange for BS25, BS50 and BS60 incl. 6pcs M6x30mm screws |
| BS-MFS |
Mounting flange for BS20 and support bearing incl. 4pcs M6x30mm screws |
