Jefa 150 series steering pedestal concept
With the 150 series pedestal Jefa Steering introduces a new style in modern pedestal design. The important accessories like the guardrail, engine control* and the compass binnacle* are integrated into the concept. Due to the innovative design a minimum of mountings bolts are visible on the exterior of the pedestal. The integrated compass offers easy and clear readings without the need of a separate binnacle. The 25 mm diameter stainless steel 316 guardrail is firmly attached to the pedestal offering the best protection for the compass and pedestal combined with a strong support when moving around in the cockpit. It also provides a strong mounting platform for a variety of instrument housings. The integrated powerful and progressive friction brake can be operated without putting one's hand through the wheel.

The 150 series pedestal concept has big advantages over existing similar concepts:
  • All pedestal parts are machined from seawater resistant solid Aluminium 6082. As this material is also used for rudder shafts, it will not corrode, even when it's exposed by a surface damage. No casted aluminium parts are used in this pedestal.
  • The robust powder coated aluminium base has no mounting holes for pedestal bolts as these are integrated in the pedestal deck flange. This avoids multiple weak points for damage with the accompanying corrosion and possible leaking.
  • The input socket has no exterior mounting bolts for a stylish look and avoiding multiple potential corrosion and damage points.
  • The robust guardrail is mounted directly to the pedestal avoiding a top plate with mounting bolts with potential corrosion points.
  • The compass binnacle is integrated in the pedestal design.
  • The steering shaft is sealed by the Jefa developed PUR seal. Normal industry seals use steel reinforcement rings in the rubber housing. As the standard industry rubber will start to crack due to the UV in the sunlight, the steel rings will corrode and destroy the seal letting water in the steering shaft bearings with disastrous effects. The PUR seal will guarantee an life long sealing.

The 150 series pedestal is available as WP150 for wire steering, RP150 for rack and pinion steering and TS150 for transmission steering. All pedestals are CE approved.

Please click on the pictures for a larger view.

Brake spinner is not included and should be ordered separately.

* the displayed compass and engine control are optional

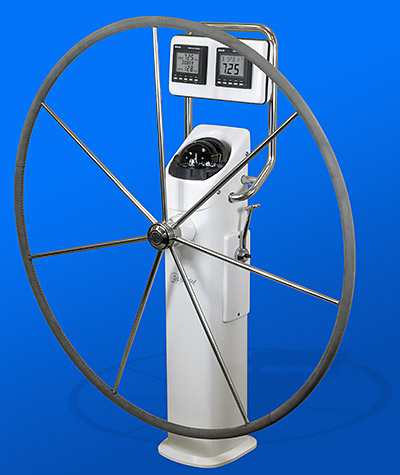

 Click for larger view

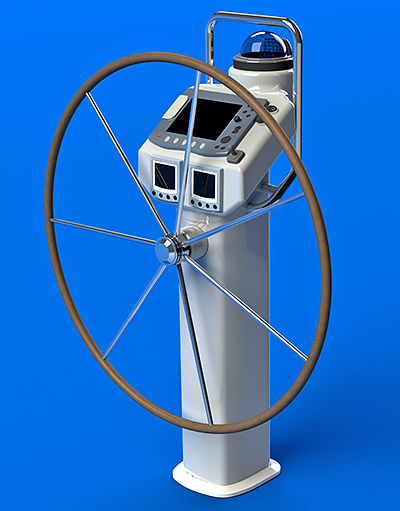

Click for larger view

Jefa 150 series steering pedestal variations
The 150 series pedestal is available in multiple variations. The pedestal can be fitted with an engine control mechanism and with a extended guardrail for the mounting of extra instruments, buttons and joysticks. The following illustrations show the most common combinations. This illustration can be seen in 3 dimensions via Adobe Acrobat (V6>). Please click on button VIEW 3-D and click on the product and hold and move the mouse.

Type 150 pedestal with standard guardrail and instrument pod type DUO.

Type 150 pedestal with standard guardrail and instrument pod type RADAR EP5.

Type 150 pedestal with extended guardrail and instrument pod type DUO & RADAR EP5.
Jefa 150 series steering pedestal with large head
The 150 series pedestal is available with a larger head to accommodate a plotter, instruments and control buttons.



Type 150 pedestal with large head.



Type 150 pedestal with large head.



Type 150 pedestal with large head.



Extra high (860 mm) type 150 pedestal with large head, plotter, engine meter and various switches. (C-Yachts 1250)



Extra high (860 mm) type 150 pedestal with large head, plotter, engine meter and various switches. (C-Yachts 1250)



Extra high (860 mm) type 150 pedestal with large head, plotter, engine meter and various switches. (C-Yachts 1250)



Extra high (860 mm) type 150 pedestal with large head, plotter, engine meter and various switches. (C-Yachts 1250)



Extra high (860 mm) type 150 pedestal with large head, plotter, engine meter and various switches. (C-Yachts 1250)



Type 150 pedestal with large head, plotter instruments and switches.

Main dimensions
Jefa 150 series engine control mechanism

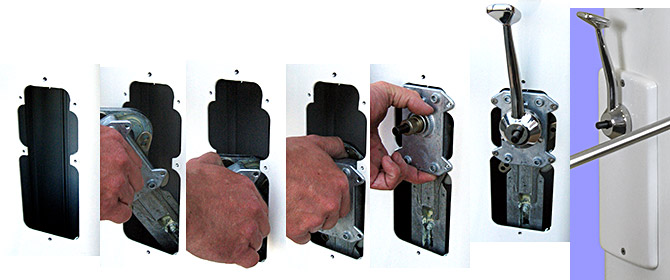

An engine control mechanism can be fitted to the Jefa 150 series pedestal. It's advisable to order the mechanism directly with the pedestal as a special profile has to be machined in the pedestal tube. A stainless steel 316 mechanism handle is included in this option.
Jefa TS150 transmission steering pedestals
The TS150 is the transmission steering version of the 150 series pedestal. The 25 mm steering shaft is equipped with the standard international 1" taper to fit all Jefa wheels up to 1500 mm diameter. The head of the pedestal contains a 1:1 bevel gear set so the torque is transmitted to the down shaft. As option the gear set can be made 1,22:1 (reducing, so more turn), or 1:1,22 (speeding up, so less turns).
Jefa TS150 transmission steering pedestal dimensions

  • The standard heights of the pedestal are 630, 710 and 800 mm. Custom heights are available at request.
  • The compass mounting flange should not exceed 180 mm diameter.
  • The appropriate compass hole will be drilled when the compass is ordered together with the pedestal.
  • The pedestal mounting studs are available in multiple lengths to suit the cockpit floor thickness.
  • All TS150 pedestal variations are available as CAD drawing in our download area.

Jefa TS150 transmission steering pedestals and accessories

Part No.

Description

TS150-63

TS150 transmission pedestal, guardrail, binnacle, 630 mm high

TS150-71

TS150 transmission pedestal, guardrail, binnacle, 710 mm high

TS150-80

TS150 transmission pedestal, guardrail, binnacle, 800 mm high

HD150-3

Surcharge for 150 type HD3 large pedestal head (only in combination with new pedestal)
