Wheel steered examples
One rudder - one wheel - transmission system - centre cockpit

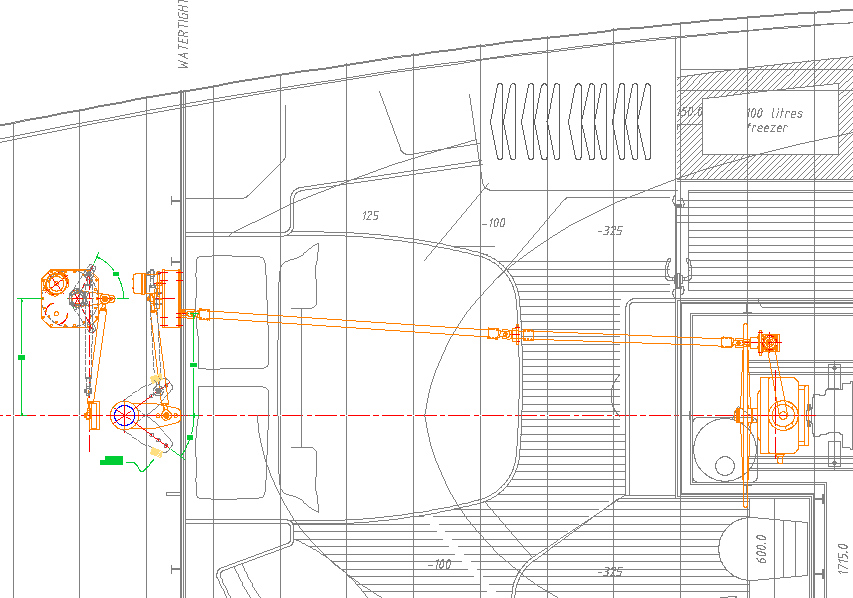

Example 141 shows the best possible steering solution for a bleu water centre cockpit cruiser: The JEFA transmission steering system. The bulkhead just in front of the rudder shaft is the ideal mounting platform for the reduction gearbox with integral autopilot drive unit. Due to a short a simple routing, a very direct steering system is achieved.



Example 142 shows the transmission system fitted in an expedition ship. The steering system had to function in the tropics and arctic. Hydraulic systems have great problems with this temperature range, but the mechanical transmission systems is perfectly suited for all conditions.

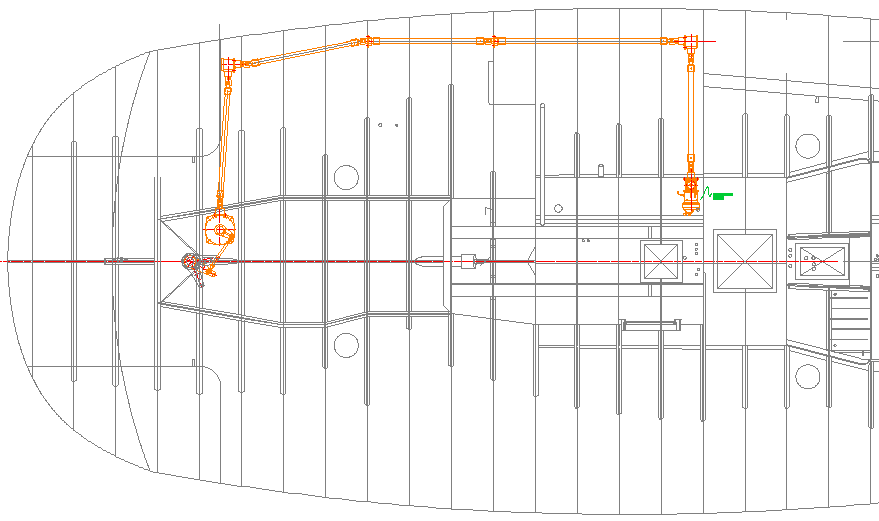

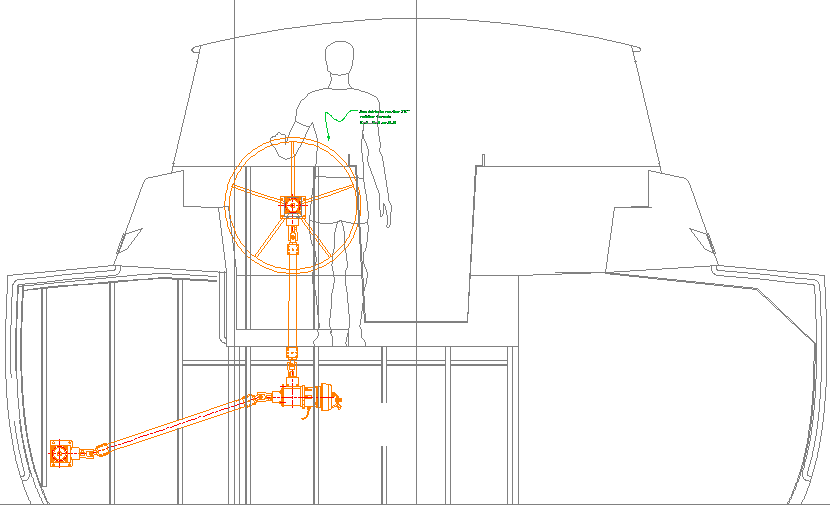

Example 143 shows the transmission system fitted to the Nordia Cruiser 55. The transmission system is ideal for long routings where other mechanical solution are impossible.



Example 144 shows the transmission system fitted to the Delphia 46CC. The transmission system is ideal for long routings where other mechanical solution are impossible.
