Jefa GRP Steering Wheels


GRP wheels
The JEFA GRP wheels are strong and light. A modern alternative for metal and more affordable than carbon.
Jefa GRP wheels are produced in a one piece aluminium mold with vacuum technology and a foam core resulting in a very stiff light construction. The wheel is painted with a 2 component black or white finish. The 1000 mm version is the first wheel in this range and weighs 3,1 kgs. The rim is oval shaped, 32 x 26 mm. Other wheel dimension will follow soon.
Please click on the picture for a larger view.

GRP steering wheels

Part No.

Description

Price in Euro

WHCG0900B

Black GRP wheel 900 mm

891

WHCG0900W

White GRP wheel 900 mm

891

WHCG1000B

Black GRP wheel 1000 mm

891

WHCG1000W

White GRP wheel 1000 mm

891

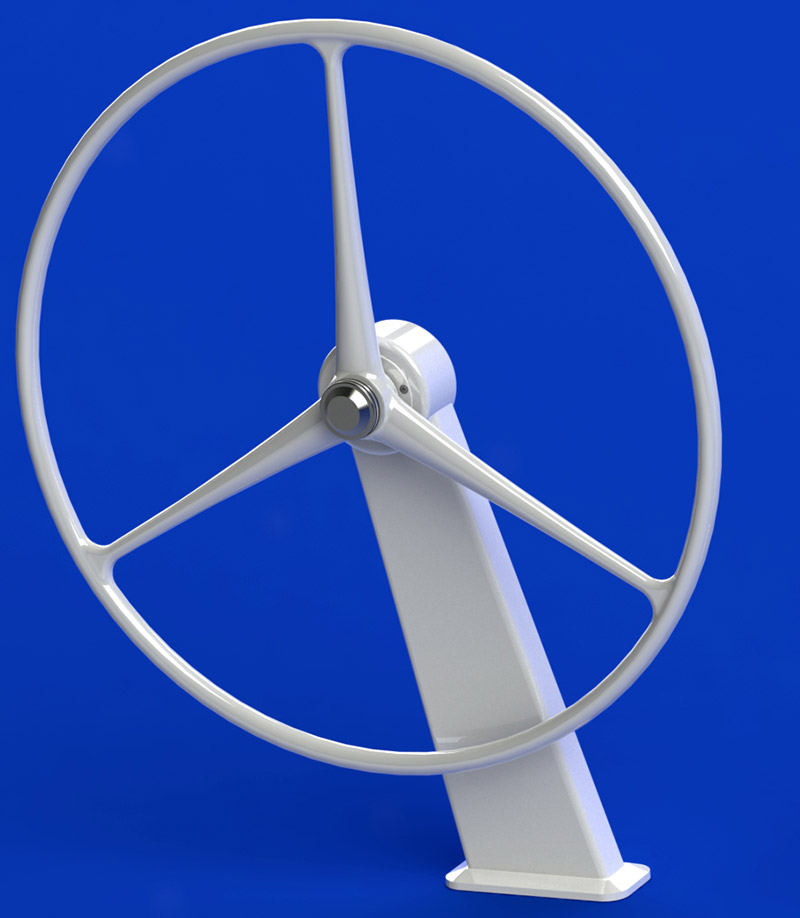

1000 mm white GRP wheel


Video showing the large deflection of the JEFA GRP steering wheel during the CE test.

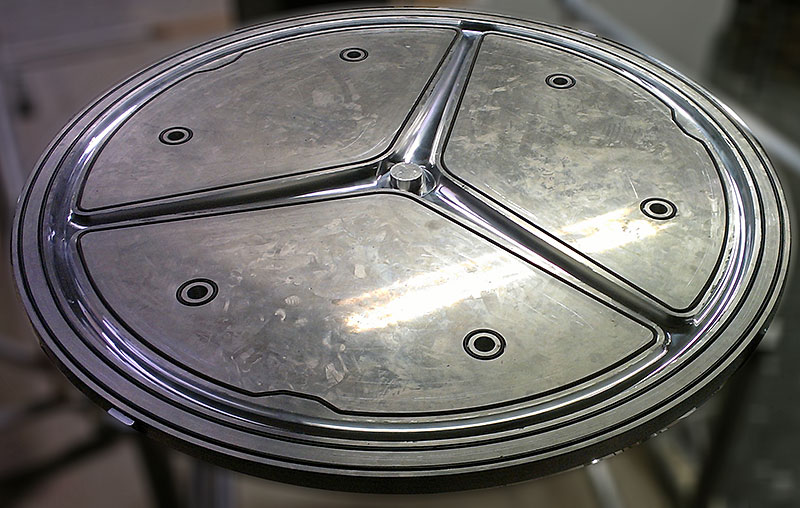

half the vacuum mold for the 1000 mm GRP wheel


The foam core of the GRP wheel.

The Jefa steering wheel tapers and hubs
All wheels up to 1500 mm have the 25 mm steering shaft taper, from 1600 mm diameter onwards the wheels have the 30 mm taper. All pedestals have the 25 mm shaft and some bulkhead steerers (BS30) and transmission steering boxes are build with the 30 mm steering shaft. Below you will find a drawing of the tapers and the wheel hubs with the distance - start of taper to wheel centre line - .


Cone adapter for hydraulic pumps
All wheels up to 1500 mm can be fitted with an adapter cone for a hydraulic pump with the "small cone" as in below sketch.

Cone adapter

Part No.

Description

Price in Euro

WHSADAP

Adapter petit cone - 8,28 degr.

27

Wheel protecting covers
Wheel protection covers are available for wheel from 900 to 1100 mm. They are made from neoprene, water and sun resistant and available in the color black.
Example of a 1000 mm wheel cover.
click on the picture for a larger view
Example of a 1000 mm wheel cover.
click on the picture for a larger view

Jefa Wheel Covers

Part No.

Description

Price in Euro

WC0900

Wheel cover for 900 mm steering wheel 86

WC1000

Wheel cover for 1000 mm steering wheel 94

WC1100

Wheel cover for 1100 mm steering wheel 102

Quick release wheel nut for fast wheel removal
The quick release nut is very handy when the steering wheel obstructs the free passage in the cockpit. It replaces the standard wheel nut and can be operated with a standard winch handle. This way the steering wheel can be quickly removed when not needed.

Quick Release Steering Wheel Nuts

Part No.

Description

Price in Euro

NQT58

Quick release wheel nut for tandem and carbon wheels*¹

57
*¹: When the steering shaft is 30 mm (large taper) in stead of 25 (small taper), the standard quick release nut NQS58 should be used.

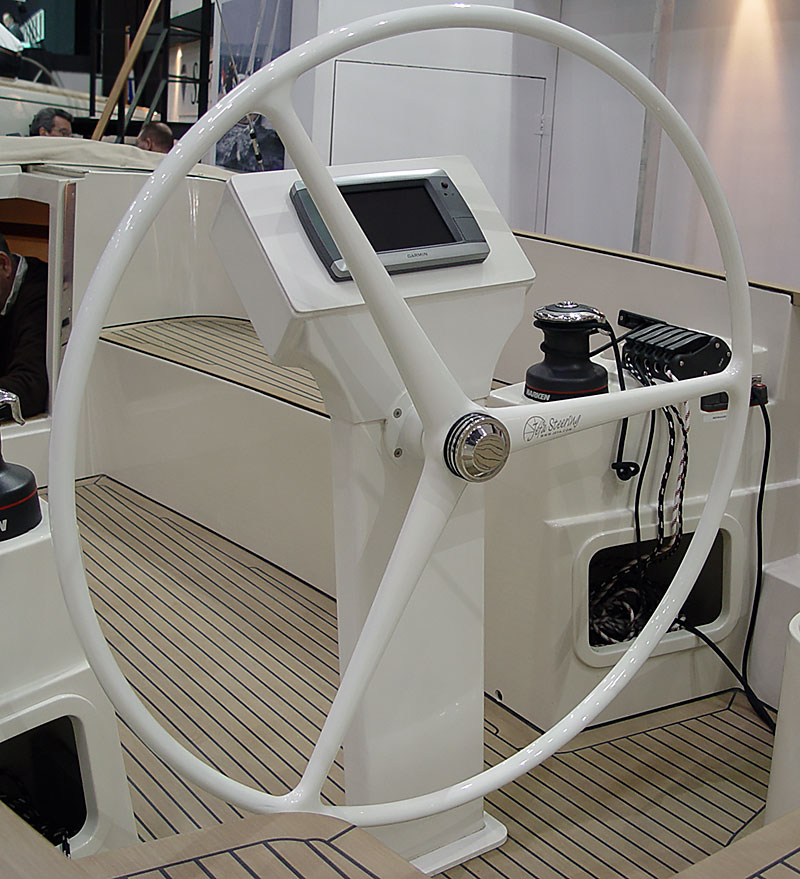

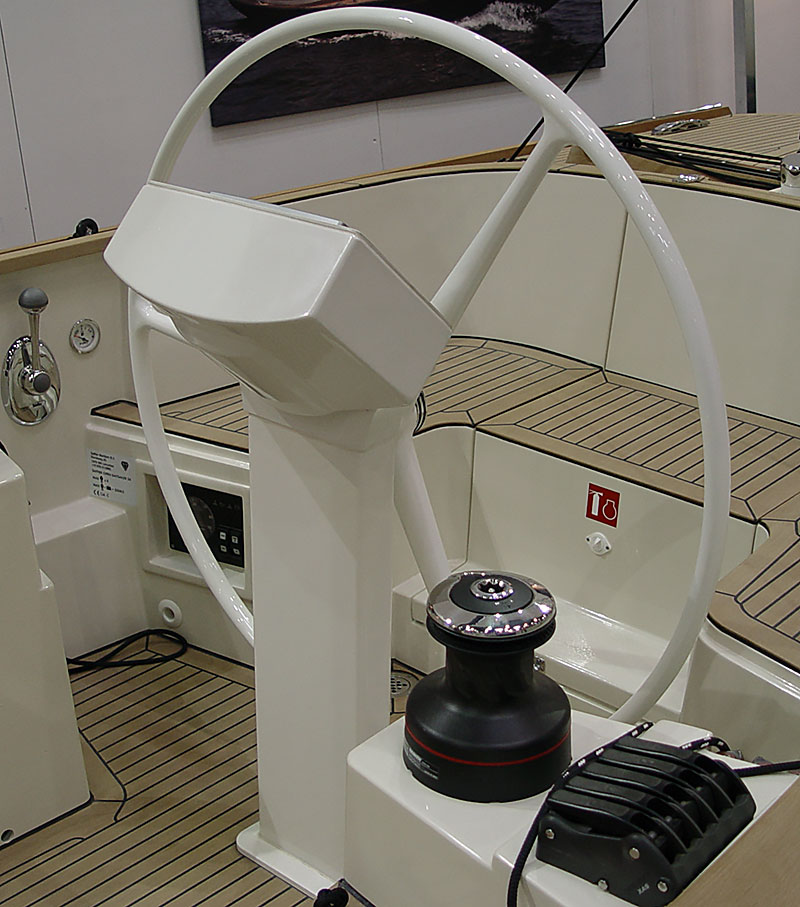

Saffier SC26 with 1000 mm GRP wheel


Saffier SC26 with 1000 mm GRP wheel
