| Tangential terminal unit |
| The Jefa tangential terminal unit is suitable for sailing
yachts from 30' to 45' with a maximum quadrant radius of 300 mm. This
unit is used when the quadrant faces port or starboard (the port version
needs the stop at the opposite side, so please mention when ordering).
The conduit cables will exit the unit pointing in the forward ship
direction, avoiding an extra bend of the conduit. Fabricated from AlMgSi1 plating, the Jefa tangential terminal unit offers a strong and reliable solution for cable in conduit steered sailing yachts. The rubber covered block in the middle of the unit runs inside the Jefa 80° quadrants and acts as a travel limiter for the rudder. The terminal unit is available with a 100 mm delrin sheave for 5 mm steering wire and a 140 mm delrin sheave for 6 mm steering wire. Please click on the picture for a larger view. |
 |
Jefa steering tangential terminal units |
||
Part No. |
Description |
Price in Euro |
TTERM-100D |
Tangential terminal unit with 100 mm delrin sheave |
€ 149 |
TTERM-140D |
Tangential terminal unit with 140 mm delrin sheave |
€ 175 |

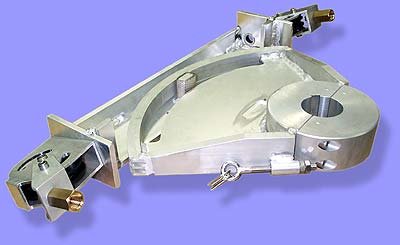

| Articulated terminal units |
| The Jefa tangential terminal units are suitable for sailing
yachts from 30' to 55' with a maximum quadrant radius of 300 mm for type
1, and 500 mm for type 2. The articulated terminal unit is used when the
quadrant faces in the aft direction of the yacht. The conduit cables
with both exit in forward direction, avoiding extra bends. The sheave
sets on the terminal unit are easy to align to both the horizontal and
vertical plane keeping the bends of the conduit cable to the absolute
minimum.
Fabricated from AlMgSi1 plating, the Jefa articulated terminal unit offers a strong and reliable solution for cable in conduit steered sailing yachts. The rubber covered block in the middle of the unit runs inside the Jefa 80° quadrants and acts as a travel limiter for the rudder. The articulated terminal unit is available as type 1 for quadrants up until 300 mm radius with 100 mm delrin sheaves for 5 mm steering wire and as type 2 for quadrants up until 500 mm radius with 140 mm delrin sheaves for 6 mm steering wire. Please click on the picture for a larger view. |
|

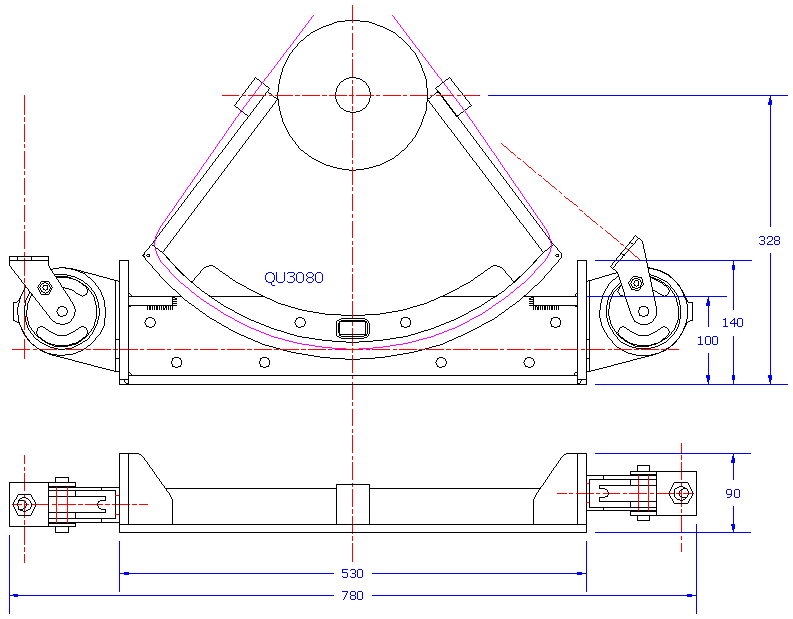

| Geometry of articulated terminal unit type 1 |
Jefa steering articulated terminal units |
||
Part No. |
Description |
Price in Euro |
TERM-A-1D |
Articulated terminal unit with 100 mm delrin sheaves |
€ 365 |
TERM-A-2D |
Articulated terminal unit with 140 mm delrin sheaves |
€ 439 |
