WP850 "A-frame" pedestal concept

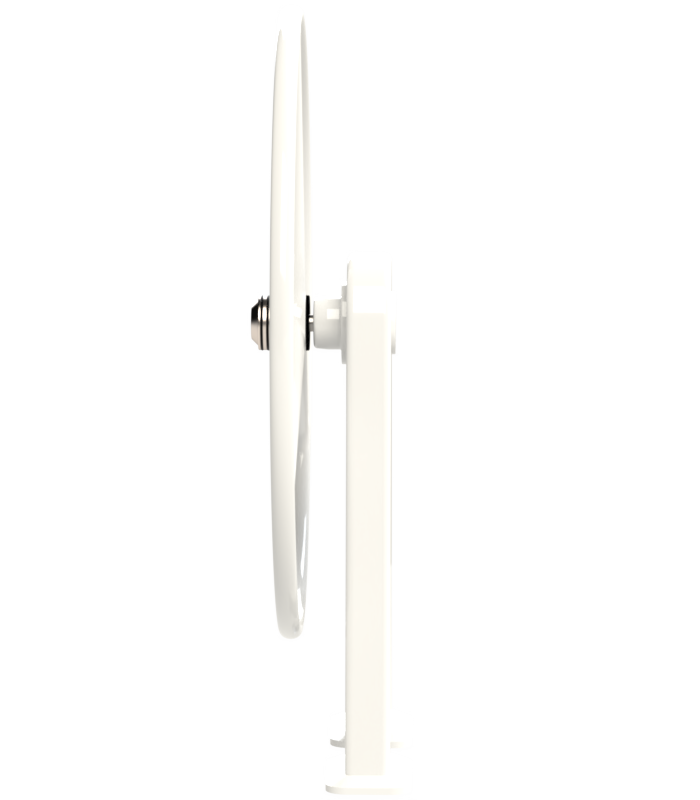

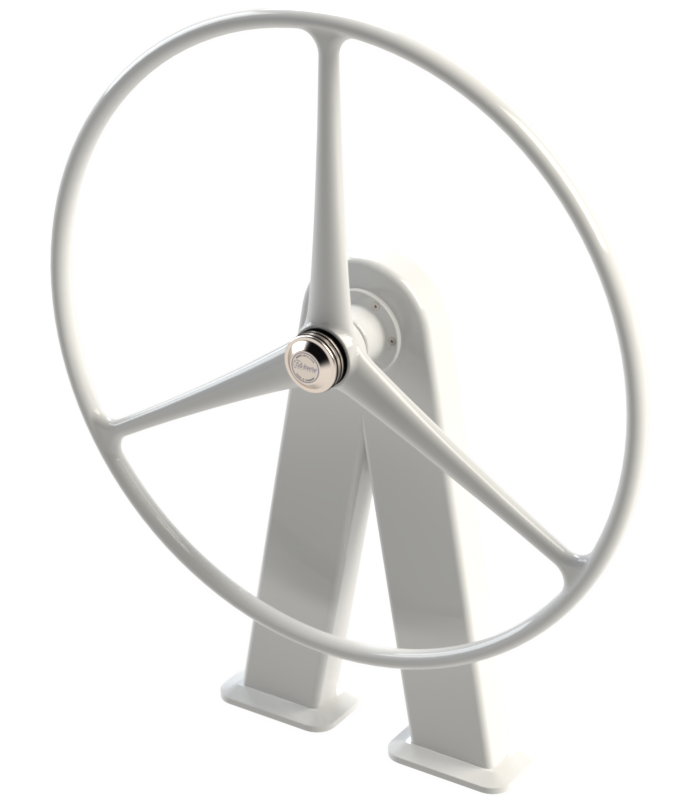

The WP850 pedestal.

Click for larger view

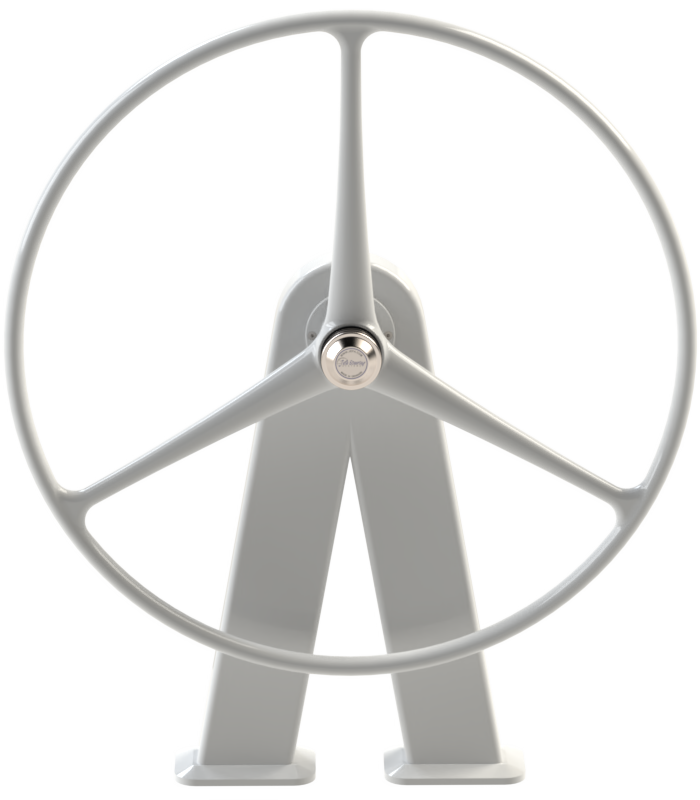

The WP850 "A-frame" pedestal solution is Jefa's answer to the demand for a strong, light and affordable pedestal for the growing number of cruiser/racers which require a modern steering solution. The pedestal is completely made of high strength aluminium 6082. This build method results in a relatively low weight (7.5 Kgs) and a very strong and stiff construction. Due to a very flexible build method, the pedestal height is variable. Please click on the pictures for a larger view.

General measurements

The WP850 pedestal is available in heights from 400 mm to 800 mm (distance centre of steering shaft to deck). The short pedestals are normally used with big steering wheels and the high pedestals with small steering wheels, all depending on the cockpit arrangement. Please visit our download page for CAD files of this pedestal.

Various pedestal options:
The WP850 pedestal is available with an optional aluminium guardrail. The guardrail is welded on the pedestal and covered with leather. Please see following pictures.

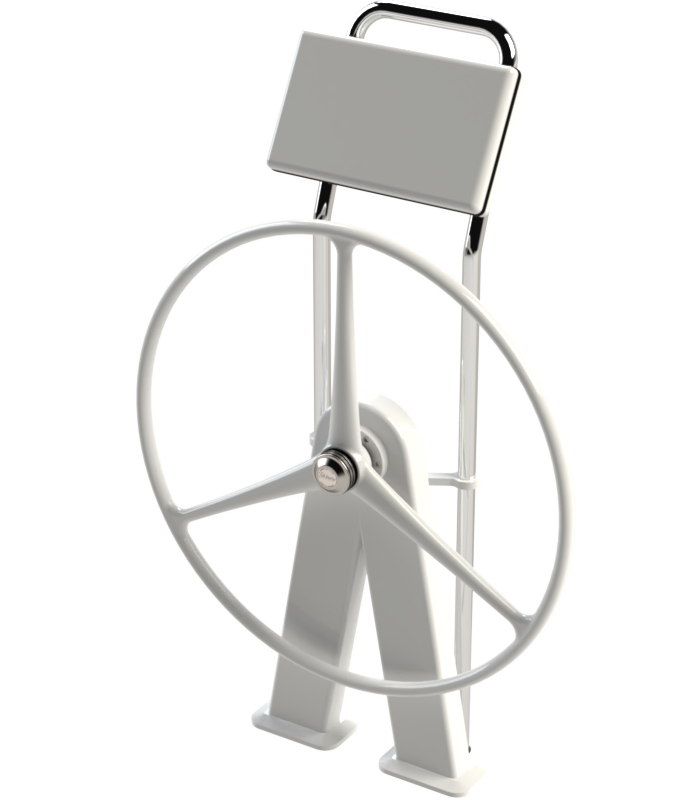

Pedestal option with guardrail and compass.

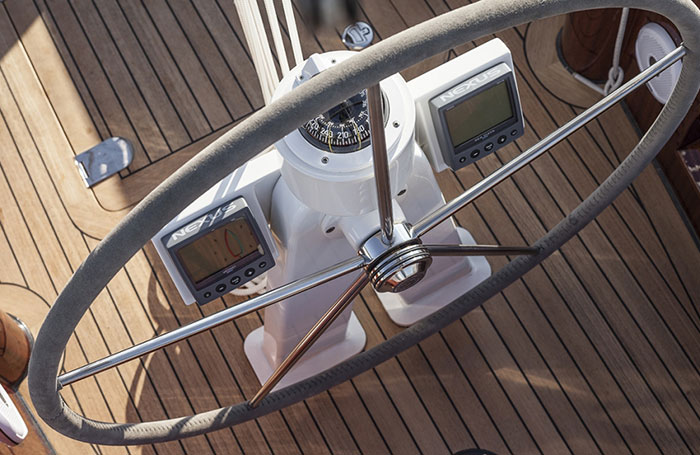

The WP850 pedestal is available with an optional guardrail and compass. Please see following picture. (The stainless guardrail is not available).

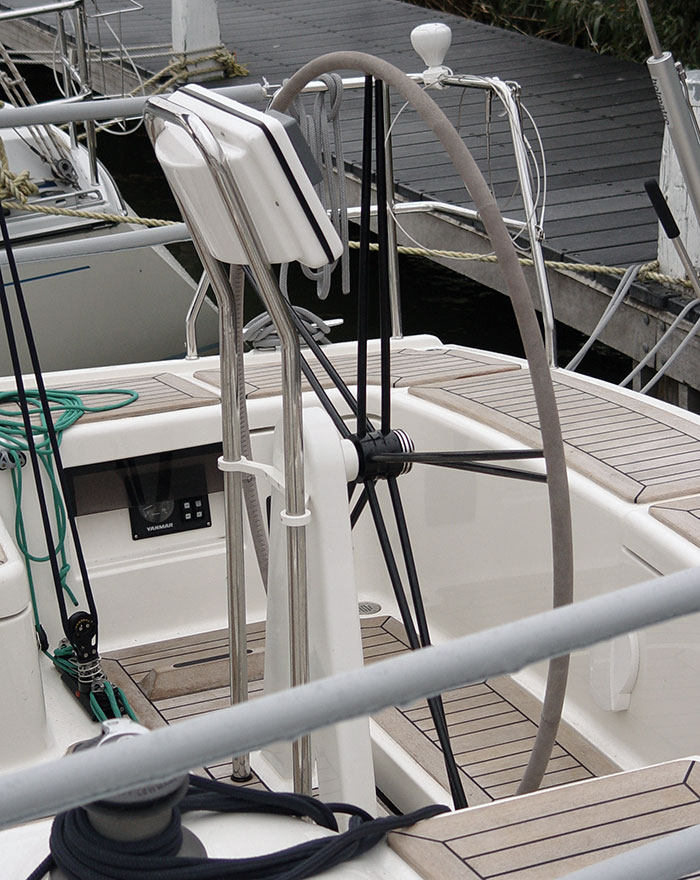

Pedestal option with extended guardrail and instrument pod.

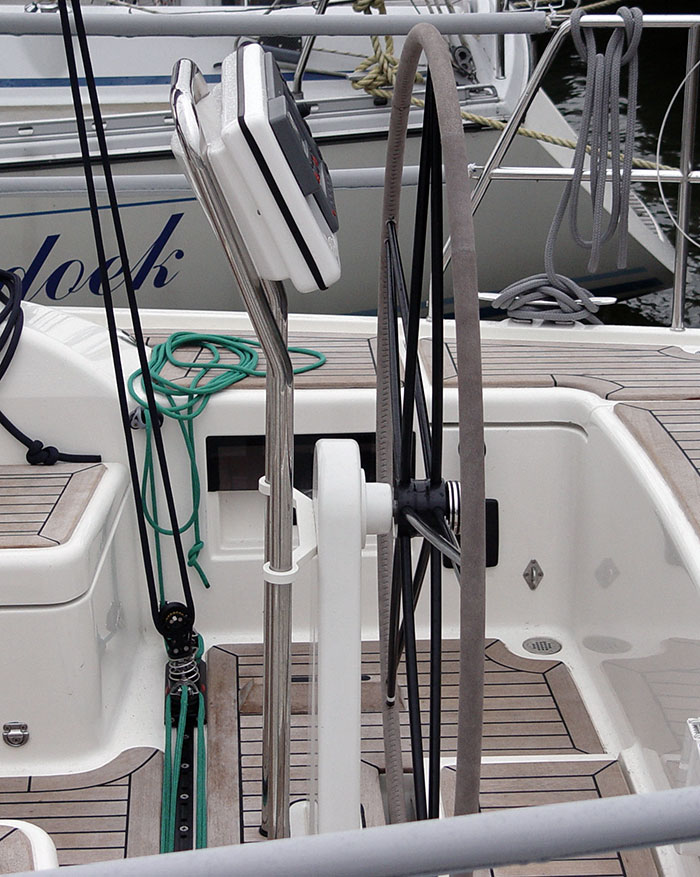

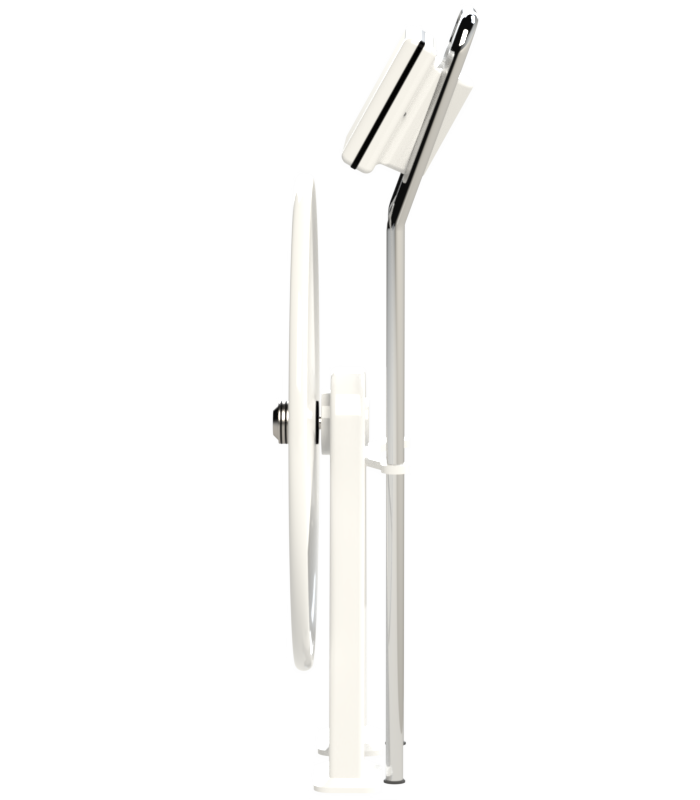

The WP850 pedestal is available with an optional extended guardrail and instrument pods. Various instrument pods can be found on this page. Please see following pictures.




Pedestal option with extended guardrail and radar & plotter instrument pod.
The WP850 pedestal is available with an optional extended guardrail and instrument pods. Various instrument pods can be found on this page. Please see following pictures.





Some installation examples:

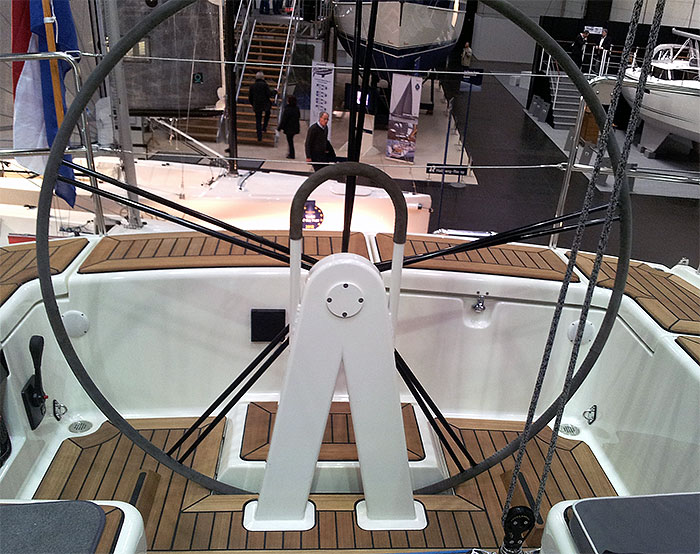

The below example shows a typical installation of the WP850 A-frame pedestal in combination with a large steering wheel. To achieve a correct rotation, the cables have to cross between the sheaves and the quadrant.


WP850 pedestal with integral idlers and swiveled sheaves:


The below example shows the installation of the WP850 A-frame pedestal with integral idlers and swiveled sheaves. The installation is very quick and easy.



integrated steering disengagement unit:
Jefa Steering has developed a disengagement steering unit to be used in all Jefa WP700-WP900 cable steering pedestals (using the BS25 steerer). As most boats nowadays are equipped with twin wheel steering, the helmsman experiences an echo of the inertia of the non-used wheel. When sailing on autopilot, both wheels have to be speeded up and down continuously causing a high power consumption and wear. The ideal solution would be if the wheel could be easily disengaged from the mechanical steering system by the helmsman. The Jefa integral disengagement steering unit offers an unique solution.   Disengagement units in the steering wheel hubs do exists, but at very high costs and causing the steering wheel hub to be very bulky so only usable on big stainless steel double spoked wheels. Modern boats use smaller (twin)  wheels made of aluminium, carbon or GRP. Disengagement units for these modern wheels don’t exist on this moment.

What makes the Jefa integrated disengagement steering unit unique and an absolute innovation?

  1. Easy and safe to operate by simply rotating the brake knob of the steering system.
  2. The disengagement unit is fully invisible as it is integrated in the steering pedestal.
  3. Excellent styling as no parts, levers or mini wheels are sticking out of the wheel hub area.
  4. Significant safety advantage due to the non-rotating wheel(s) during autopilot cruise.
  5. Superb feel while manual sailing due to the lack of friction and inertia of the wheel not in use.
  6. No more unnecessary energy loss and steering system wear while sailing on autopilot.
  7. The intelligent construction uses tapered self-searching gears for quick engagement.
  8. Retrofittable to all thousands of existing Jefa cable steering pedestals.
  9. Affordable price level (295 euro surcharge on an new system and 699 euro for a retrofit unit including new steerer (prices excluding VAT).



Please follow this link to YouTube for an animation of the functioning.

Price overview

Jefa WP850 A-frame pedestals

Part No.

Description

Price in Euro

WP850-11 WP850 A-frame pedestal with 11 teeth 5/8" st.st. sprocket € 1.634
WP850-13

WP850 A-frame pedestal with 13 teeth 5/8" st.st. sprocket

€ 1.634
WP850-15

WP850 A-frame pedestal with 15 teeth 5/8" st.st. sprocket

€ 1.634
WP850-17

WP850 A-frame pedestal with 17 teeth 5/8" st.st. sprocket

€ 1.634
WP850-ID1

WP850 idler set with 100 mm delrin sheaves

€ 333
WP850-ID2

WP850 idler set with 140 mm delrin sheaves

€ 400
INST-BIN

Binnacle House for WP800/850

€ 165
WP850-GL

WP850 guardrail

€ 282
WP850-GLE

WP850 extended guardrail, incl. bracket and guardrail feet

€ 353
WS-DIS

Disengagement unit integrated in steerer/pedestal

€ 311

The WP850 pedestals are available in custom heights from 400 to 800 mm. Please specify on order.

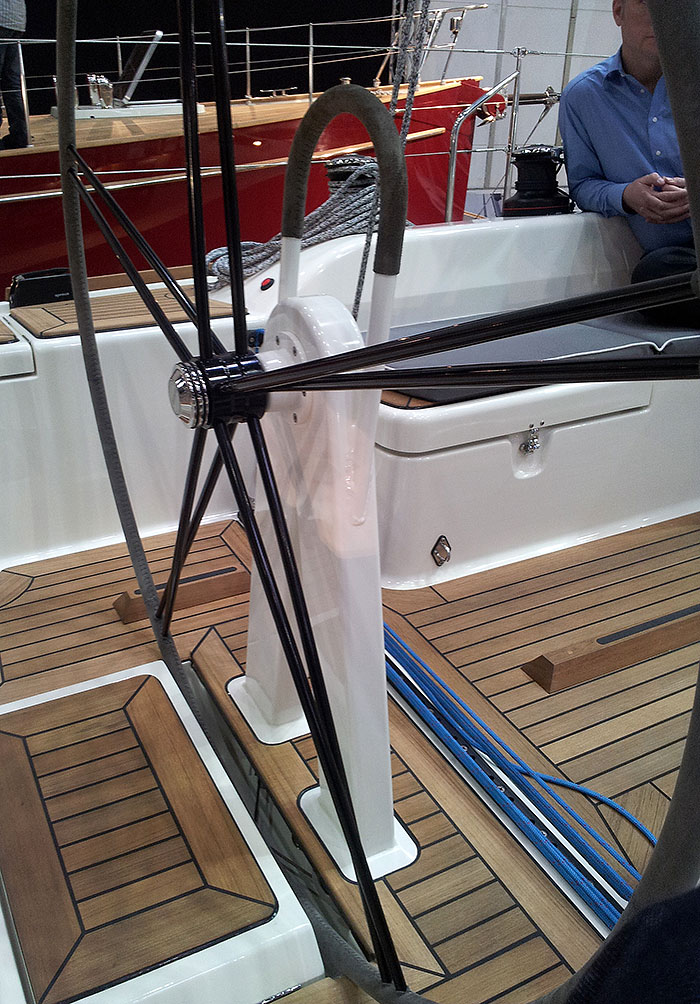

WP850 example on deck:

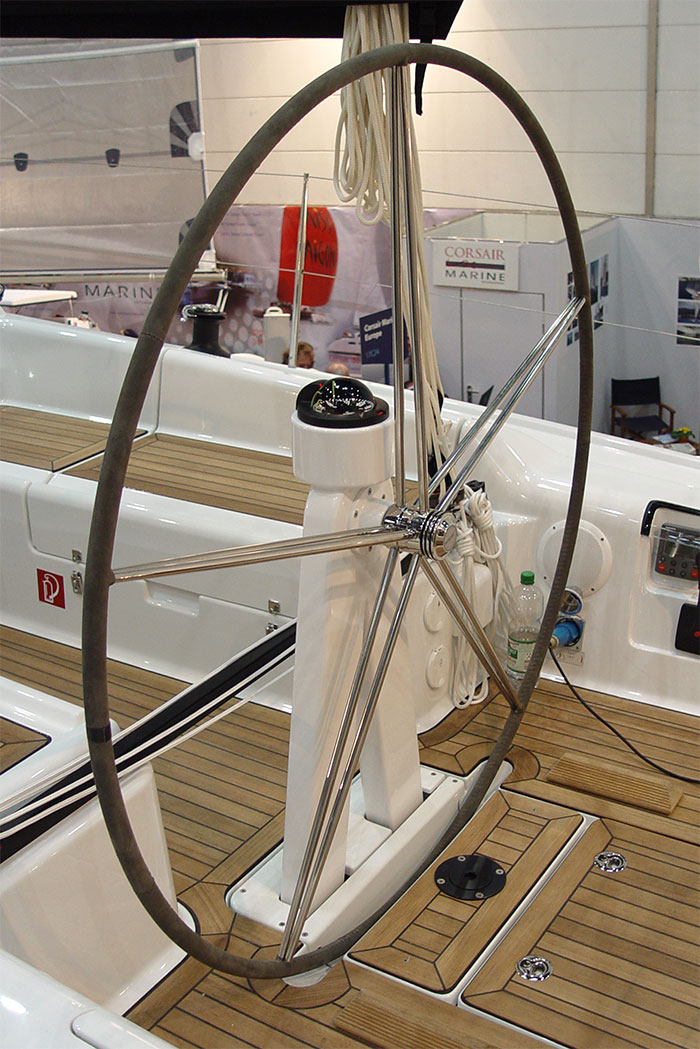

Winner 1220 with the WP850 A-frame pedestal


Winner 1220 with the WP850 A-frame pedestal including extended guardrail
and EP5 radar instrument housing.

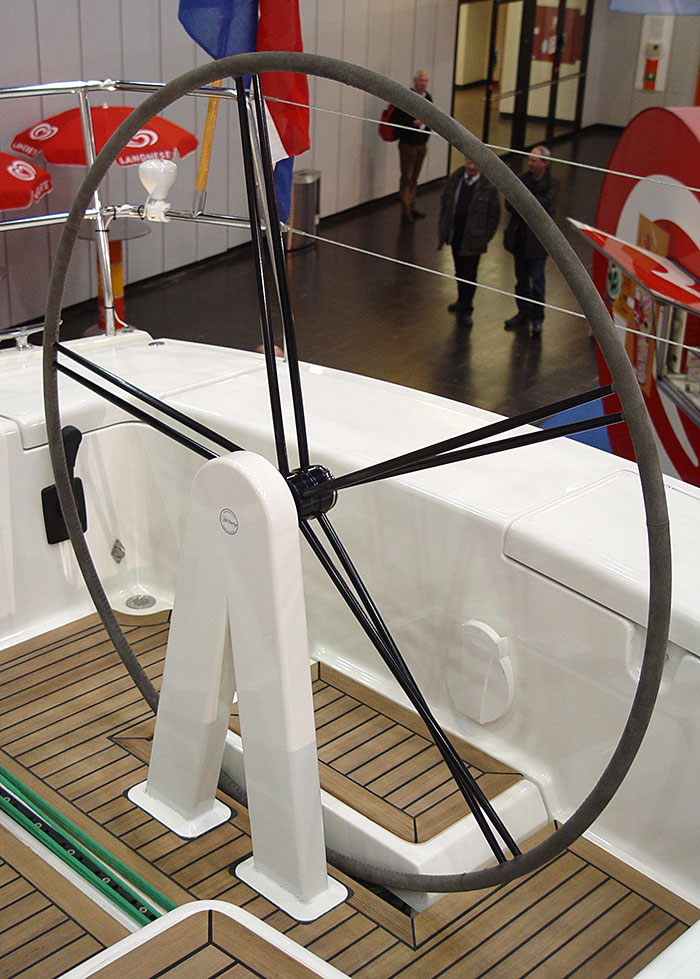

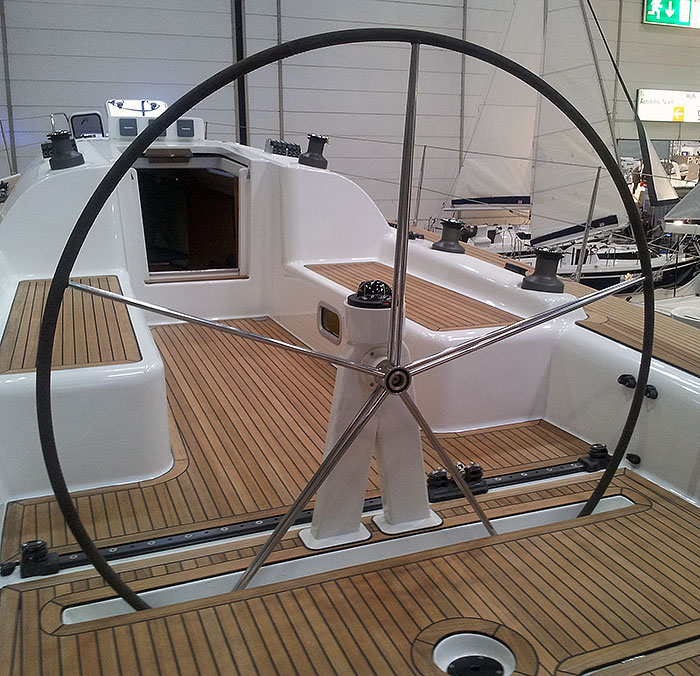

Dehler 35 with WP850 pedestal and integral binnacle

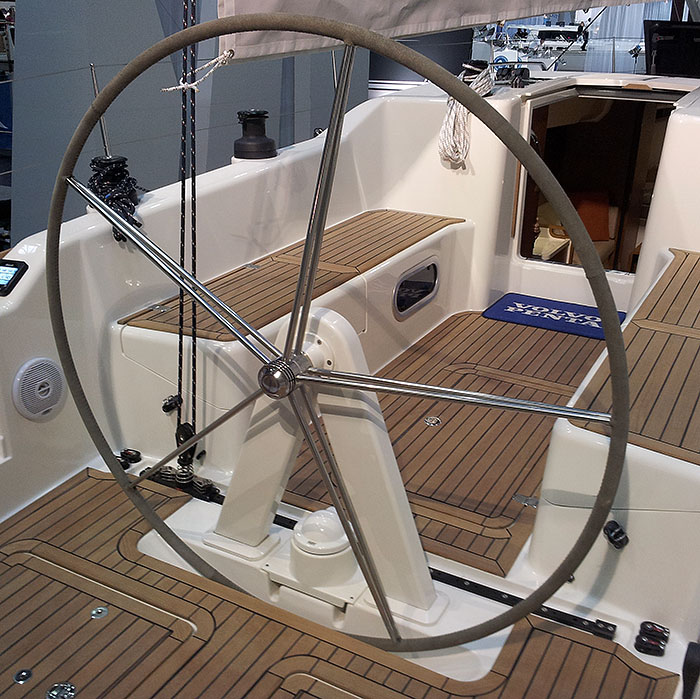

Pacer 376 with WP850 pedestal and binnacle


Custom wide WP850 with compass in middle


Aluminium guardrail, hide covered, on Winner 1220


Aluminium guardrail, hide covered, on Winner 1220

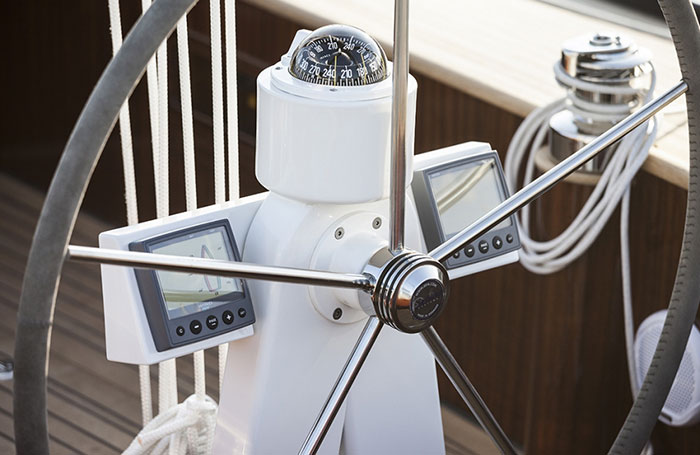

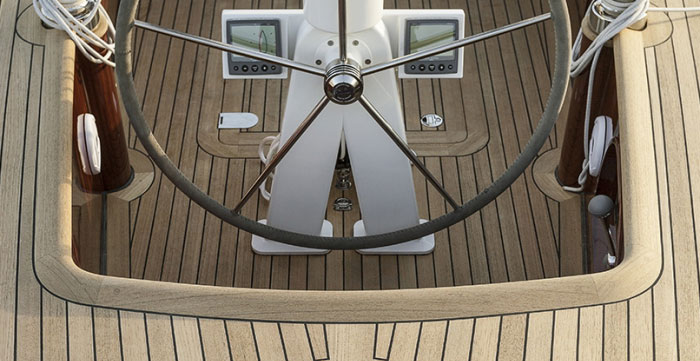

Lόtje Daysailer 35 with yard made instrument housing
